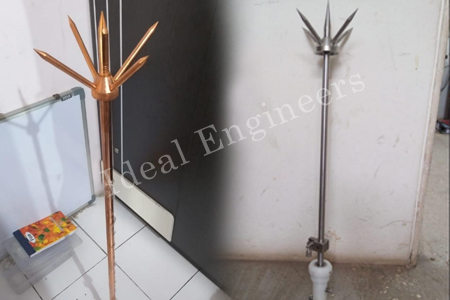

Lightning Arrester

The LA is a device used to protect the infrastructure from the direct Lightning. There are two types of Lightning - 1) Cloud to Cloud 2)Cloud to Ground. Cloud to cloud lightning does not affect us but cloud to ground lightning effects on human life as well infrastructure. So we have to protect from direct Lightning. For it Lightning Arresters play a vital role. We M/s Ideal Engineers protect human life as well as residential, industrial infrastructure by using the principle of IEC 62305/ IS 2309/ NFC 17 102.

Category:

• ESE Lightning Arresters (As per NFC 17 102)
• SS Lightning Arresters (As per IEC 62305/IS 2309)
• Copper Lightning Arresters (As per IEC 62305/IS 2309)

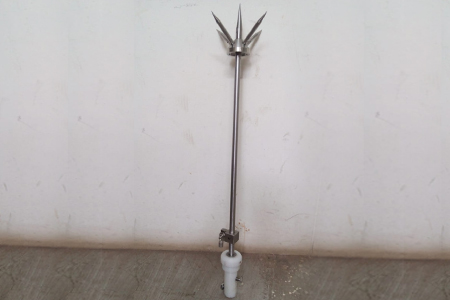

Passive protection systems:

It is a protection system that does not perform any prior action to lightning strike, its functionality is executed when lightning strikes the structure in charge of driving and dissipates the energy of lightning to the ground. It is designed & installed as per IS 62305 / IS2309.

It is the system comprising:

• Franklin lightning rods

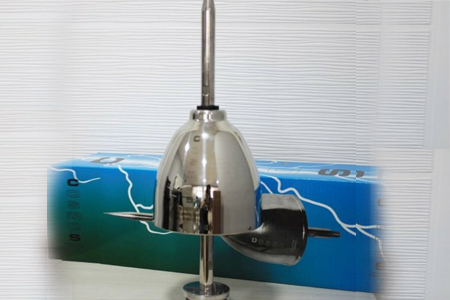

Active protection systems:

The active protection system performs pre-action to the lightning strike, the priming system emits an ionization creating a shock return to the cloud directed channelling and directing the beam to a safe and ready for download point. It is designed & installed as per NFC 17 102.

It is the system comprising:

• Early Streamer Emission

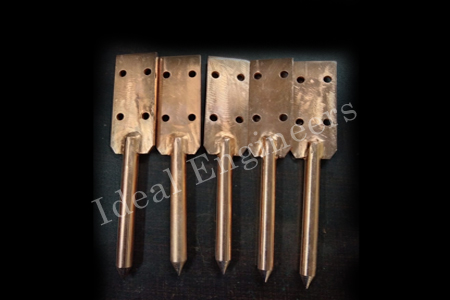

Chemical Earthing Electrode

Chemical Earthing system is used to protect the Man & Machines from the direct shock. For any electrical equipment's earthing is an essential part. Chemical Earthing Electrode is made up of with highly conductive metal with chemical compound as per IS 3043. Its results maintenance free earthing over conventional one. No need to pour any charcoal or salt after some interval. Due to high life of it industries preferred Chemical Earthing over convectional one. We M/s Ideal Engineers made up this Chemical Earthing with highly conductive metal like Hot dip GI , Pure Copper as well in Copper Bonded along with highly conductive graphite based Back Fill Compound.

Category:

• GI Chemical Earthing Electrode
• Copper Bonded Chemical Earthing Electrode
• Pure Copper Earthing Electrode
• Copper Bonded Solid Earthing Rod

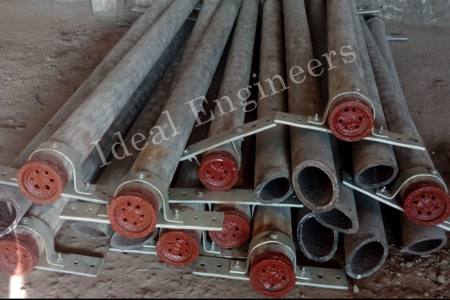

Cast Iron Earthing Pipes

Cast Iron Earthing Pipe is used for the Earthing System in heavy electricals power systems like Substations , Thermal Power, High Load transformers & Towers. Every state of electrical board like MSETCL approved this Earthing pipe in heavy electricals systems. Due to capacity of passing loaded high current, highly conductive and Non-corrosive characteristics this pipe is used in electrical supply stations.

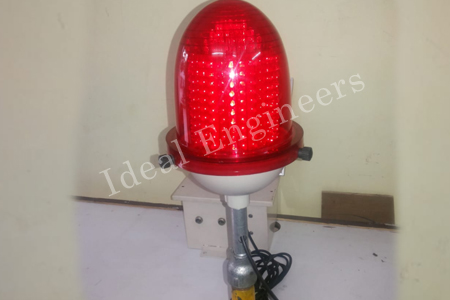

Aviation Lamp

Aviation Lamp made by guidelines of ICAO & Available in Low, High & Medium Intensity. Aviation lamps are high intensity lights which is used to indicates the height of the building or tower to avoid aircraft collusions during night time. They are placed on the tower to more visible its structure. The lights are red color or ultra violet and high intensity.

Category:

• Single Dome Aviation Lamp
• Double Dome Aviation Lamp

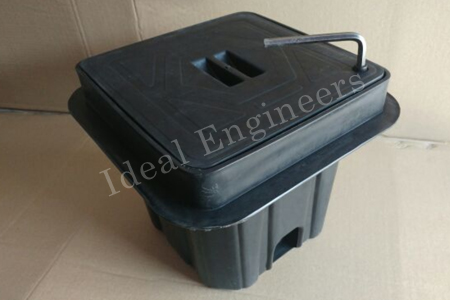

Earthing Chambers

Earthing is an important component of electrical systems because of the following reasons: It keeps people safe by preventing electric shocks. It prevents damage to electrical appliances and devices by preventing excessive current from running through the circuit. We provide service for earthing chambers. Earth Chamber is manufactured with the use of quality material which is reliable to use. They are used in order to secure Protection for all earthing

Category:

• FRP Earthing Chamber(Square & Round)
• RCC Earthing Chamber
• MS Earthing Chamber

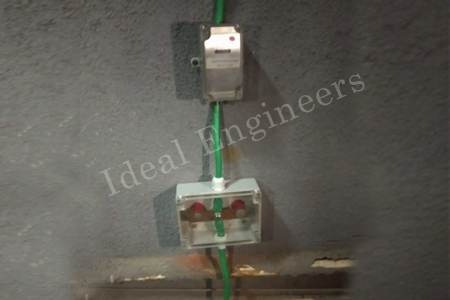

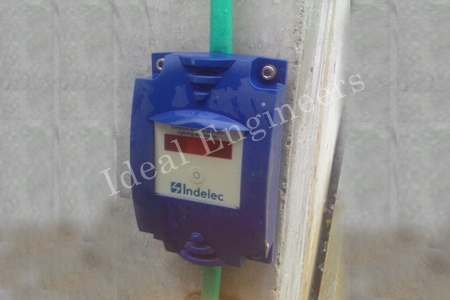

Lightning Counter

The lightning counter is a device designed to detect lightning strikes upon any external lightning protection system (lightning rods, ESE, faraday cages, etc). It must be installed in the down conductor that connects the lightning rod to the grounding system. This Lightning Counter is used for count the event of Lightning.

Category:

• Digital Lightning Counter
• Analog Lightning Counter

Test Links

In most cases earthing integrate with lightning protection system and low current systems. Test Links are an effective and convenient way of providing a common earth point. The disconnecting link is mainly used to offer a temporary break in the connection to earth allowing the testing of an earth rod whilst disconnecting from the lightning protection system.

Back Fill Compound

Back fill compound is used to pour at the side of the Earthing rod to ensure more conductivity to pass current from the earthing rod. It totally replaced conventional charcoal & salt. It does not affect the earthing rod for corrosion. So life on Earthing drastically increases.

Earthing Name Plate

Earthing Name Plate is used for tagging the earthing system. As per standard we have to audit the earthing pit every year & put earthing resistance , checking date & Due date on that board. It will help the remarking earthing.
